Spherical plain bearings
WELD PLATE TYPE TBK TBK ...
Alternative designations There can be no guarantee made for the exact equality of the bolt between the different manufacturers!
IPS ...
TBK-...
IPS ...
TBK-...

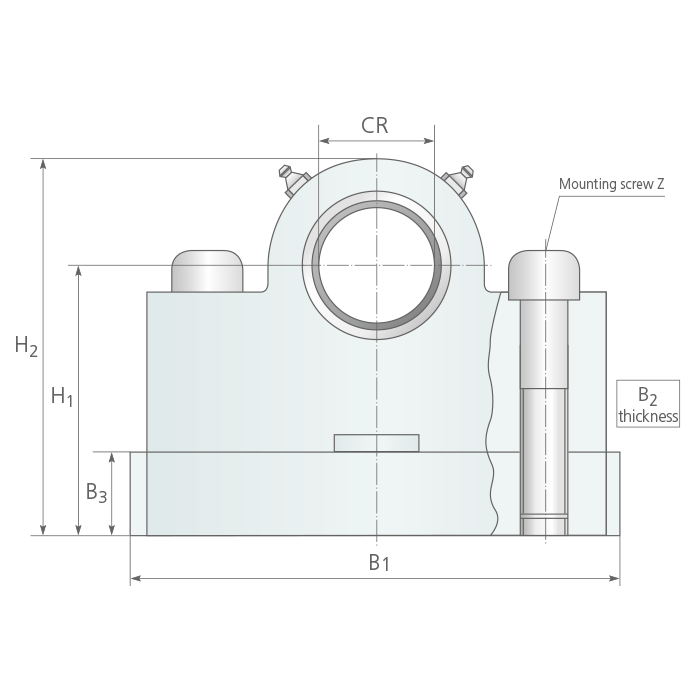

Main dimensions | Cylinder screw | |||||||
B1 | B2 | B3 | CR H7 | H1 | H2 | Z | ISO 4762-10.9 | |
[mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [-] | [-] | |
|
TBK 12 |
65 |
19 |
15 |
12 |
49 |
65 |
2 |
M 8 x 35 |
|
TBK 16 |
85 |
24 |
20 |
16 |
60 |
80 |
2 |
M 10 x 45 |
|
TBK 20 |
95 |
24 |
20 |
20 |
65 |
90 |
2 |
M 10 x 50 |
|
TBK 25 |
115 |
29 |
20 |
25 |
75 |
100 |
2 |
M 12 x 60 |
|
TBK 32 |
160 |
38 |
30 |
32 |
95 |
130 |
4 |
M 16 x 75 |
|
TBK 40 |
180 |
48 |
35 |
40 |
111 |
155 |
4 |
M 20 x 90 |
|
TBK 50 |
220 |
58 |
40 |
50 |
135 |
180 |
4 |
M 24 x 110 |
|
TBK 63 |
280 |
68 |
50 |
63 |
162 |
230 |
4 |
M 30 x 130 |
|
TBK 80 |
340 |
88 |
55 |
80 |
195 |
275 |
4 |
M 36 x 160 |
Parts are sold in pairs
