Rótula
SOPORTE DE RODAMIENTO DE VÁSTAGO PIVOTANTE
TIPO TB DIN ISO 8132 TB ...
iNo se puede garantizar la
uniformidad exacta de los vástagos
pivotantes de distintos fabricantes!
CLTB-...
IS ...
TB-…

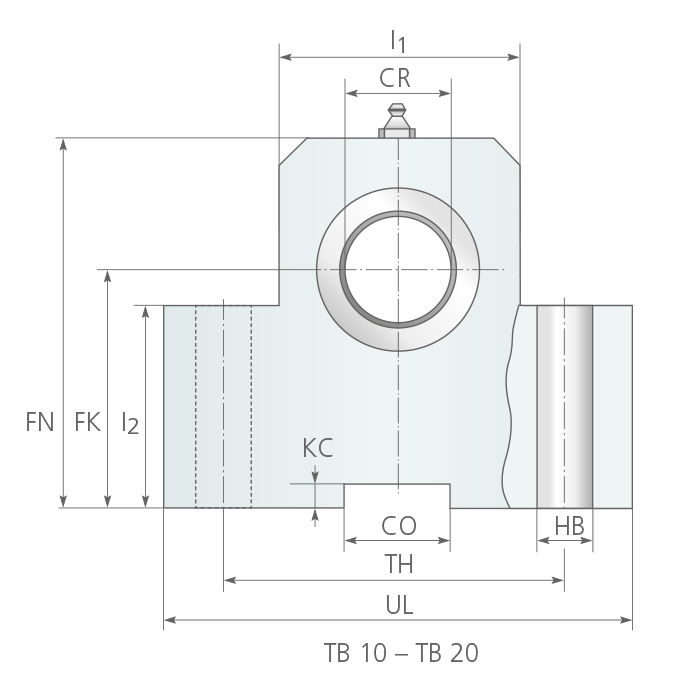

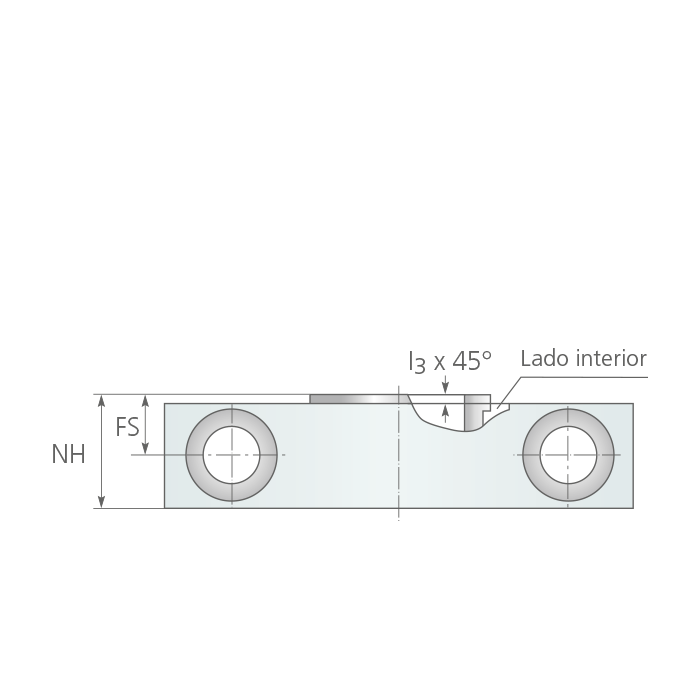

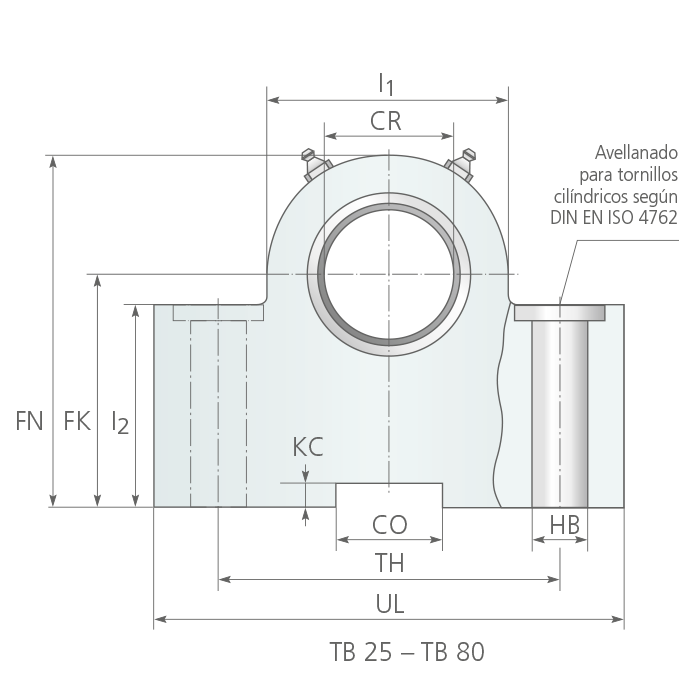

Dimensiones principales | Masa | Fuerza nominal | |||||||||||||
CO N9 | CR H7 | FK Js12 | FN | FS Js14 | HB H13 | KC +0,3 bis 0 | I1 | I2 | I3 | NH max | TH Js14 | UL max | m | F nom. | |
[mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [-] | [mm] | [kg] | [kN] | |
|
TB 12 |
10 |
12 |
34 |
49 |
8 |
9,0 |
3,3 |
25,0 |
25 |
1,0 |
17 |
40 |
63 |
0,46 |
8,0 |
|
TB 16 |
16 |
16 |
40 |
59 |
10 |
11,0 |
4,3 |
30,0 |
30 |
1,0 |
21 |
50 |
80 |
0,83 |
12,5 |
|
TB 20 |
16 |
20 |
45 |
69 |
10 |
11,0 |
4,3 |
40,0 |
38 |
1,5 |
21 |
60 |
90 |
1,21 |
20,0 |
|
TB 25 |
25 |
25 |
55 |
80 |
12 |
13,5 |
5,4 |
56,0 |
45 |
1,5 |
26 |
80 |
110 |
2,15 |
32,0 |
|
TB 32 |
25 |
32 |
65 |
100 |
15 |
17,5 |
5,4 |
70,0 |
52 |
2,0 |
33 |
110 |
150 |
4,70 |
50,0 |
|
TB 40 |
36 |
40 |
76 |
120 |
16 |
22,0 |
8,4 |
88,0 |
60 |
2,5 |
41 |
125 |
170 |
7,80 |
80,0 |
|
TB 50 |
36 |
50 |
95 |
140 |
20 |
26,0 |
8,4 |
90,0 |
72 |
2,5 |
51 |
160 |
210 |
14,20 |
125,0 |
|
TB 63 |
50 |
63 |
112 |
177 |
25 |
33,0 |
11,4 |
136,0 |
87 |
3,0 |
61 |
200 |
265 |
23,40 |
200,0 |
|
TB 80 |
50 |
80 |
140 |
220 |
31 |
39,0 |
11,4 |
160,0 |
112 |
3,5 |
81 |
250 |
325 |
53,10 |
320,0 |
