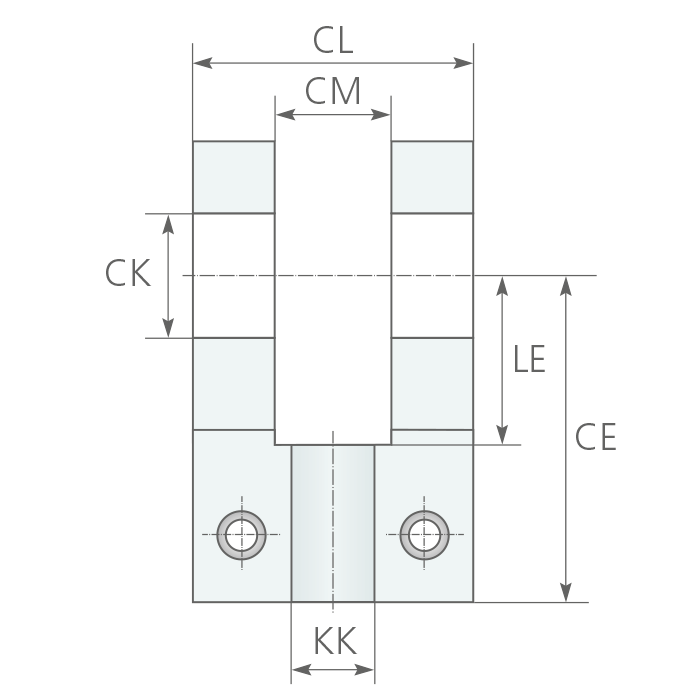

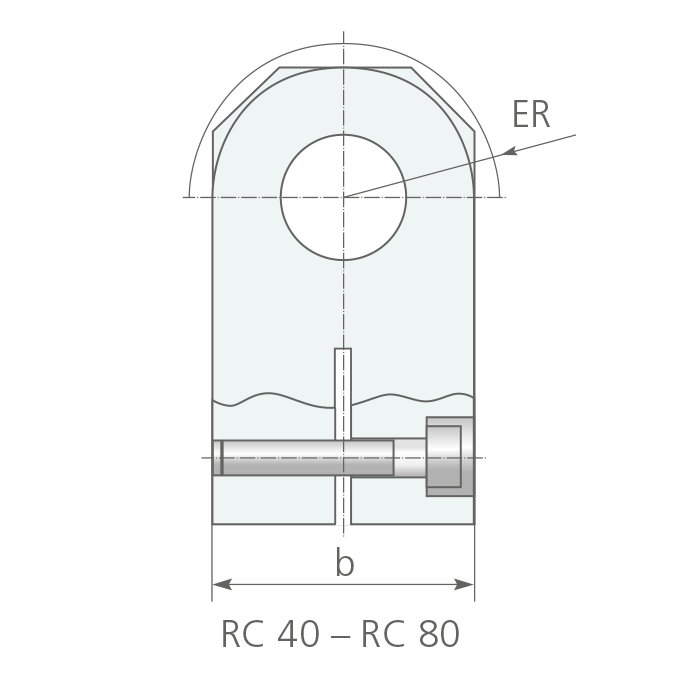

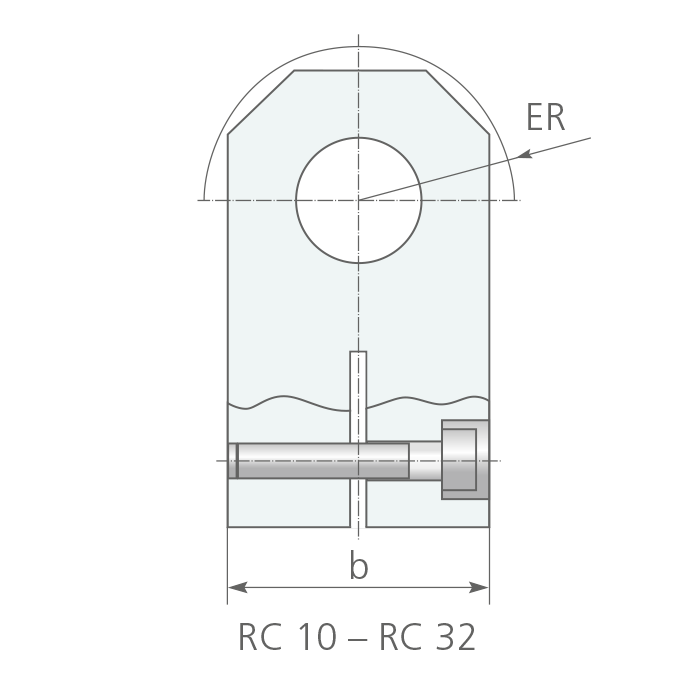

CABEZAL DEL HORQUILLA TIPO RC DIN ISO 8132 RC ...
iNo se puede garantizar la
uniformidad exacta de las horquillas
de distintos fabricantes!
CCKB ...
IF ...
RC-...
Dimensiones principales | Masa | Fuerza nominal | Tornillo de fijación | ||||||||
b max | CE Js12 | CK H9 | CL h16 | CM A12 | ER max | KK | LE min | m | F nom. | [-] | |
[mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [-] | [mm] | [kg] | [kN] | ||
|
RC 10 |
20 |
37 |
10 |
24 |
10 |
11 |
M 10 x 1,25 |
18 |
0,10 |
5,0 |
M 3 x 12 |
|
RC 12 |
25 |
38 |
12 |
28 |
12 |
16 |
M 12 x 1,25 |
18 |
0,15 |
8,0 |
M 4 x 16 |
|
RC 16 |
30 |
44 |
16 |
36 |
16 |
20 |
M 14 x 1,5 |
22 |
0,27 |
12,5 |
M 6 x 20 |
|
RC 20 |
40 |
52 |
20 |
45 |
20 |
25 |
M 16 x 1,5 |
27 |
0,53 |
20,0 |
M 8 x 30 |
|
RC 25 |
50 |
65 |
25 |
56 |
25 |
32 |
M 20 x 1,5 |
34 |
1,13 |
32,0 |
M 10 x 35 |
|
RC 32 |
65 |
80 |
32 |
70 |
32 |
40 |
M 27 x 2 |
42 |
2,18 |
50,0 |
M 12 x 40 |
|
RC 40 |
80 |
97 |
40 |
90 |
40 |
50 |
M 33 x 2 |
52 |
4,40 |
80,0 |
M 16 x 50 |
|
RC 50 |
100 |
120 |
50 |
110 |
50 |
63 |
M 42 x 2 |
64 |
7,60 |
125,0 |
M 20 x 60 |
|
RC 63 |
140 |
140 |
63 |
140 |
63 |
71 |
M 48 x 2 |
75 |
11,70 |
200,0 |
M 24 x 80 |
|
RC 70 1) |
160 |
160 |
70 |
150 |
70 |
80 |
M 56 x 2 |
90 |
- |
250,0 |
M 24 x 90 |
|
RC 80 |
180 |
180 |
80 |
170 |
80 |
90 |
M 64 x 3 |
94 |
30,60 |
320,0 |
M 30 x 100 |
|
RC 90 1) |
200 |
195 |
90 |
190 |
90 |
100 |
M 72 x 3 |
108 |
- |
400,0 |
M 36 x 120 |
|
RC 100 1) |
220 |
210 |
100 |
210 |
100 |
110 |
M 80 x 3 |
120 |
- |
500,0 |
M 36 x 130 |
